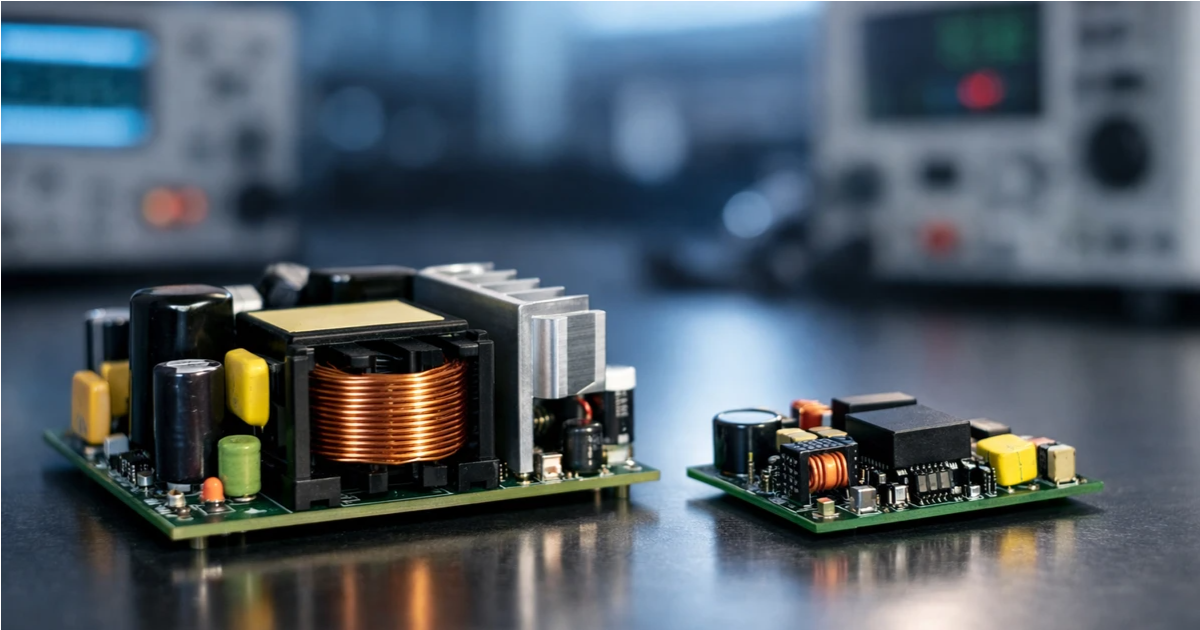

Isolated vs Non Isolated Power Supply : What’s the Difference?

When you design or select a power system, one of the most important questions you need to ask is whether you require isolation. The discussion around Isolated vs Non-Isolated Power Supply is not just a technical detail. It directly affects safety, reliability, and system performance.

If you are working with industrial equipment, sensitive electronics, or energy infrastructure, understanding this difference helps you avoid costly mistakes. The type of power supply you choose determines how electrical noise is managed, how faults are contained, and how safely your system operates.

Let’s break it down in a way that makes practical sense.

What Is an Isolated Power Supply?

An isolated power supply separates the input and output circuits electrically. This separation is typically achieved using a transformer. The transformer transfers energy magnetically rather than through a direct electrical connection.

In practical terms, isolation prevents direct current flow between the input and output sides. This protects downstream equipment from voltage spikes and ground faults.

In discussions of isolated vs. non-isolated power supplies, isolation is often chosen when safety and noise reduction are critical. Industrial systems, medical equipment, and high-voltage environments commonly rely on isolation to reduce risk.

Isolation also helps reduce ground loop issues, which can cause unstable operation in sensitive systems.

What Is a Non-Isolated Power Supply?

A non-isolated power supply does not electrically separate input and output. It uses direct conversion methods such as buck or boost converters to regulate voltage.

Because there is no transformer for isolation, these supplies are often smaller, lighter, and more efficient. They are well-suited for applications where input and output share a common ground and where safety isolation is not required.

When comparing Isolated vs Non-Isolated Power Supply, non-isolated designs are typically used in low-voltage electronics and compact systems where efficiency and size are priorities.

However, they do not provide the same level of protection against electrical faults.

Key Differences You Should Consider

When evaluating a power supply, focus on three main factors. Safety, noise performance, and system architecture.

If your application involves high voltages, multiple grounding points, or sensitive control systems, isolation adds an important layer of protection. It limits the transfer of electrical disturbances.

If your system operates in a controlled, low-voltage environment and shares a common ground, a non-isolated design may be more efficient and cost-effective.

The right decision depends entirely on your application. Also read about Working of Programmable DC Power Supply.

Performance and Efficiency Trade-Offs

Isolated supplies may introduce slightly lower efficiency because of transformer losses. Non-isolated supplies often achieve higher efficiency in compact designs.

However, efficiency alone should not determine your choice. In industrial and energy systems, protection and long-term reliability often outweigh small efficiency differences.

Solutions designed for demanding environments, such as those offered by BOS-Power, focus on matching the right power architecture to real operating conditions.

Choosing the Right Option for Your System

You should start by evaluating voltage levels, safety requirements, and regulatory standards. If your system must meet strict isolation requirements, that decision is clear.

If your application allows a shared ground and operates within safe low-voltage limits, a non-isolated supply may be appropriate.

Understanding Isolated and Non-Isolated Power Supply helps you design systems that are both safe and efficient. The key is aligning the power architecture with the operational demands of your equipment.

Conclusion

The difference between Isolated vs Non-Isolated Power Supply comes down to electrical separation, safety, and system requirements. Isolation provides protection and noise reduction. Non-isolated designs offer compact size and efficiency.
